Mezzanine Racking Structural Design: Engineering Vertical Space for Maximum ROI

The rapid growth of e-commerce and warehouse operations has increased the demand for intelligent storage solutions. Mezzanine racking structural design plays a vital role in helping logistics and manufacturing companies expand storage capacity vertically without increasing their building footprint.

Everunion, a direct manufacturer with over 20 years of experience, specializes in designing and delivering high-quality mezzanine racking systems that are not just structures, but precisely engineered platforms built for safety, longevity, and specific operational flows.

What Is Mezzanine Racking Structural Design?

Mezzanine racking refers to the engineering and construction of elevated intermediate platforms within a warehouse. These platforms create additional usable floor space while integrating seamlessly with pallet racking and other storage systems.

Main Types of Mezzanine Structures

• Free-Standing Mezzanines: Independent structures anchored to the floor, offering maximum flexibility for retrofitting and relocation.

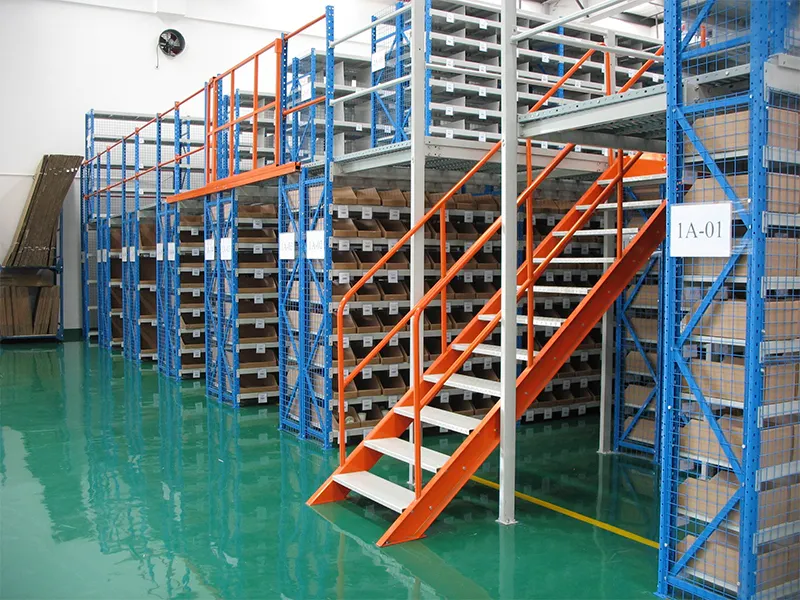

• Rack-Supported Mezzanines: Built directly on top of or integrated with pallet racking uprights, providing excellent space efficiency and cost savings.
• Structural/Decked Mezzanines: Heavy-duty designs suitable for higher loads, concrete decking, and integrated architectural requirements.
• Modular & Relocatable Mezzanines: Prefabricated bolted systems that can be easily expanded, reconfigured, or moved.

Fundamental Aspects of Mezzanine Racking Structural Design

A mezzanine is only as good as the engineering behind it. Everunion’s design process focuses on the critical structural factors that ensure safety and performance.

1. Load Capacity Considerations

Proper load analysis is critical. Everunion’s engineering team evaluates:

• Uniform Live Loads: Distributed loads across the entire platform (e.g., pallet storage, shelving, or personnel).
• Point Loads: Concentrated loads from racking uprights, equipment, or machinery resting on the deck.
• Dynamic Loads: Forces from material handling equipment (like pallet jacks) and human traffic.

Using advanced simulation software, Everunion ensures every mezzanine design meets or exceeds required safety factors.

2. The Critical Factor: Building Slab Load Capacity

Because mezzanines are self-supporting, their massive point loads are transferred directly to the warehouse floor slab. If the slab cannot support the new loads, the mezzanine cannot be built safely.
Everunion’s engineering team conducts rigorous slab capacity analyses. If the floor is insufficient, we redesign the mezzanine with wider base plates, closer column spacing, or additional support beams to distribute the load safely.

3. Seismic Design and Safety Compliance

In earthquake-prone regions, seismic design is essential. Everunion incorporates:

• Reinforced bracing and column connections
• Specialized anchoring systems
• Advanced seismic simulation modeling

All systems are engineered to comply with international standards (FEM, EN, ISO, CE) and local building codes.

4. Clear Height vs. Usable Height

A common pitfall is miscalculating the building’s clear height. A 9-meter ceiling does not equal two 4.5-meter levels. Everunion designs account for:

• Structural depth: The depth of primary/secondary beams and the deck thickness (150-300mm per level).
• Clearance requirements: Minimum safe operating height for forklifts and personnel below.
• Overhead space: Required clearance for sprinklers, lighting, and HVAC above the top level.

Integration with Industrial Racking and Automation

Everunion excels at integrating mezzanine structures with existing pallet racking, conveyor systems, and automation technologies. This creates hybrid solutions that combine high-density storage on lower levels with efficient picking or value-added processes on the mezzanine level.

Modern designs can also incorporate smart technologies such as IoT sensors for structural health monitoring and inventory tracking systems for real-time visibility.

Best Practices in Mezzanine Racking Structural Design

1. Assess the Slab First: Conduct thorough site assessments of floor load capacity before designing the structure.
2. Perform Detailed Analysis: Execute precise load and seismic calculations based on actual inventory weights, not estimates.
3. Prioritize Modular Components: Design for future scalability using bolted connections.
4. Ensure Safe Access: Integrate proper access solutions (stairs, pallet gates, goods lifts) that do not disrupt floor-level operations.
5. Mandate Safety Features: Include handrails, kick plates, and fall protection per FEM and OSHA guidelines.

Why Choose Everunion for Mezzanine Racking Projects?

As a direct manufacturer, Everunion offers clear advantages:

• In-house Engineering & Fabrication: Superior quality control and cost efficiency from concept to steel.
• Customized Structural Design: Tailored to your specific load requirements, slab conditions, and warehouse layout.
• Seamless Integration: One-stop solutions for mezzanines, lower-level racking, and material handling equipment.
• Comprehensive Project Support: From initial structural calculations and permit drawings through installation.
• Proven Global Experience: Delivering safe, code-compliant mezzanine solutions across multiple industries in 90+ countries.

Conclusion

A well-engineered mezzanine racking structural design is a strategic investment that significantly boosts warehouse capacity, operational efficiency, and long-term flexibility.

Everunion combines advanced structural engineering, high-quality materials, and practical industry experience to deliver mezzanine solutions that are safe, scalable, and optimized for real-world performance.

Whether you need a simple free-standing platform or a complex rack-supported multi-level system, Everunion can provide a customized solution that meets your current needs and supports future growth.

Ready to unlock the full potential of your warehouse vertical space? Contact Everunion’s engineering team today for a professional site assessment and tailored mezzanine racking design.
