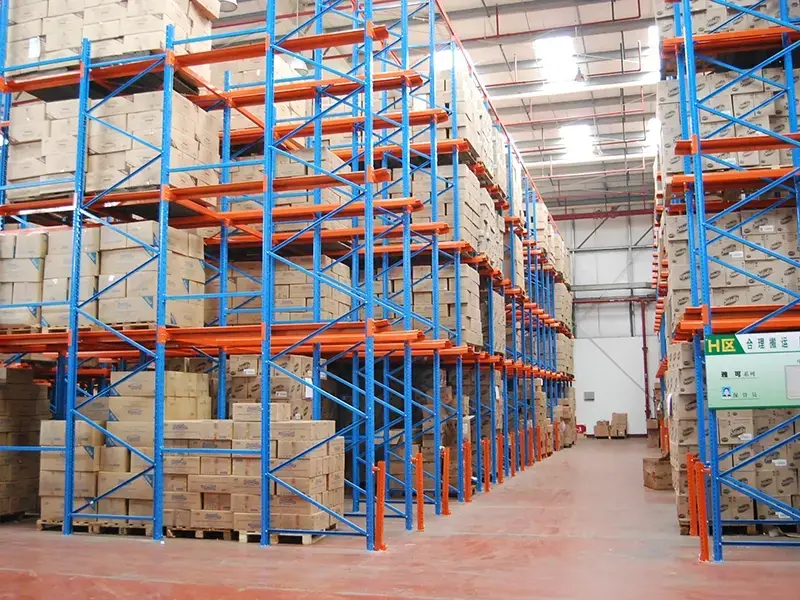

Drive-In Racking System: High-Density Storage With Superior Pallet Jam Prevention

In warehouses where maximizing storage density is critical, the drive-in racking system remains one of the most effective industrial racking solutions. Designed for high-volume, low-SKU inventory, drive-in and drive-through racking allow forklifts to enter directly into the rack structure, significantly increasing pallet positions per square foot compared to selective systems.

Everunion, a trusted heavy duty rack supplier, engineers robust drive-in drive-through racking systems that deliver outstanding space efficiency while addressing common operational challenges like pallet jam prevention and warehouse safety.

Understanding Drive-In vs Drive-Through Racking

Both systems offer deep-lane, high-density storage, but they serve different inventory flow requirements:

• Drive-In Racking: Operates on a LIFO (Last-In, First-Out) basis. Forklifts enter from one side only. Ideal for uniform products with lower turnover rates.
• Drive-Through Racking: Supports FIFO (First-In, First-Out) flow with access from both ends. Best suited for perishable goods, food, and time-sensitive inventory.

Everunion’s drive-in drive-through racking systems are built with heavy-duty structural steel to support demanding loads while maintaining long-term structural integrity.

Key Advantages of Drive-In Racking Systems

• Maximum Storage Density: By eliminating most picking aisles, drive-in systems can increase storage capacity by 50% to 75% or more compared to selective pallet racking.
• Cost Efficiency: Reduces aisle space and lowers the overall building footprint required per pallet.
• Heavy Duty Performance: Designed for demanding industrial environments with high load capacities.
• Versatile Applications: The go-to solution for cold storage, food & beverage, manufacturing raw materials, and bulk goods distribution.

Pallet Jam Prevention: A Critical Safety and Efficiency Feature

One of the biggest operational challenges in drive-in racking is pallet jamming—where pallets get stuck on the rails, causing damage, downtime, and severe safety risks. Everunion’s pallet racking storage solutions incorporate advanced, engineering-led design features for reliable pallet jam prevention:

1. Optimized Rail Center Distances (Preventing Pallet Deflection)

Unlike standard racking where pallets sit on flat beams, in drive-in systems, pallets span between two parallel rails. If the distance between these rails is too wide, the pallet will sag (deflect) under load and get stuck. Everunion precisely calculates and minimizes the rail center distance based on your specific pallet type to eliminate unsupported overhang and prevent sagging.

2. Flared Entry Guide Rails (Smooth Insertion)

The most vulnerable point for misalignment is the lane entry. Everunion welds flared entry guide rails (funnel-shaped ends) at the front of each lane. These guides physically catch and center the pallet as the forklift approaches, ensuring it enters the deep lane perfectly straight on the first attempt.

3. Structural Rigidity (Preventing Lane Deformation)

If the upright frames deflect under heavy load, the rail alignment twists, causing jams. Everunion utilizes heavy-duty uprights and strategic bracing to minimize rack deflection, ensuring the internal lane geometry remains perfectly parallel even under maximum weight.

Warehouse Safety Systems in Drive-In Racking

Safety is paramount when forklifts operate inside confined racking lanes. Everunion integrates comprehensive warehouse safety systems:

• Floor-Mounted Guide Rails: Structural rails bolted to the warehouse floor that keep the forklift tires strictly aligned within the lane, preventing the truck from clipping uprights.
• Column Protectors & End-of-Aisle Barriers: Shield vulnerable uprights from inevitable forklift impacts at lane entries.
• Overhead Pallet Stops: Prevent forklift operators from pushing pallets too far and falling out the back of the rack.
• Anti-Collapse Bracing: Reinforces the structural integrity of the entire block.
• Clear Load Capacity Plaques: Strictly communicated weight limits to prevent overloading and structural failure.

All systems are engineered to meet international safety standards (FEM, EN, ISO, CE).

Why Choose Everunion as Your Heavy Duty Rack Supplier?

As an experienced heavy duty rack supplier and industrial racking solutions provider, Everunion offers clear advantages:

• In-house design and manufacturing for superior quality control
• Custom-engineered drive-in racking systems tailored to your *exact* pallet dimensions, load weights, and forklift specifications
• Advanced pallet jam prevention technologies based on structural mechanics, not just guesswork
• Comprehensive project support — from layout planning and load calculations to installation and after-sales service
• Proven global track record serving cold storage, food logistics, manufacturing, and distribution industries

Conclusion

A well-designed drive-in racking system delivers exceptional storage density and operational efficiency when paired with smart engineering. By focusing on pallet jam prevention at the structural level, structural durability, and comprehensive warehouse safety systems, Everunion helps businesses achieve maximum ROI from their pallet racking storage solutions.

Whether you need a traditional drive-in setup, a drive-through FIFO configuration, or a hybrid high-density solution, Everunion provides reliable, heavy-duty systems built for long-term performance.

Looking to optimize your warehouse with a high-density drive-in or drive-through racking system? Contact Everunion’s engineering team today for a professional assessment and customized solution.
